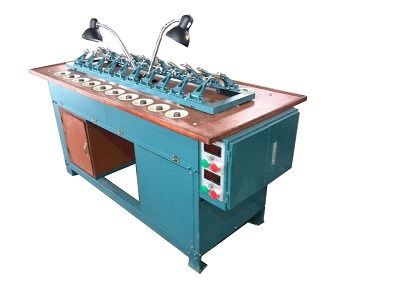

Twenty Spindles Lens Grinding and Polishing Machine

Twenty Spindles Lens Grinding and Polishing Machine

Product name:Twenty Spindles Lens Grinding and Polishing Machine

Item:GPA10.20

Details:

Application:
For grinding and polishing curve surface of optical,quartz,crystal and electrical elements etc.

Features:
1.Twenty main spindles and twenty swing frame are driven independently and are infinitely variable,speeds show on digital display.
2. Size and position of eccenter stroke is easy to adjust.
3. Working pressure is produced by adjustable weight block.
4. Traditional grinding& polishing machine.

Technical Data:

Lens / block diameter: 10mm
Pan diameter: 130mm
Number of spindles: 20
Swing style: arc motion in plane surface
Spindle speed: 200 - 1000rpm (stepless)
Swing frame swing frequency: 10 - 100times/min (stepless)
Swing stoke: 0 - 20mm
Pressure: weight block.
Power Requirement: 2KW
Space Requirement: 1800×750×950mm
Weight: approx.600kg

Note: The machine can be designed and produced according to buyer’s requirements.
